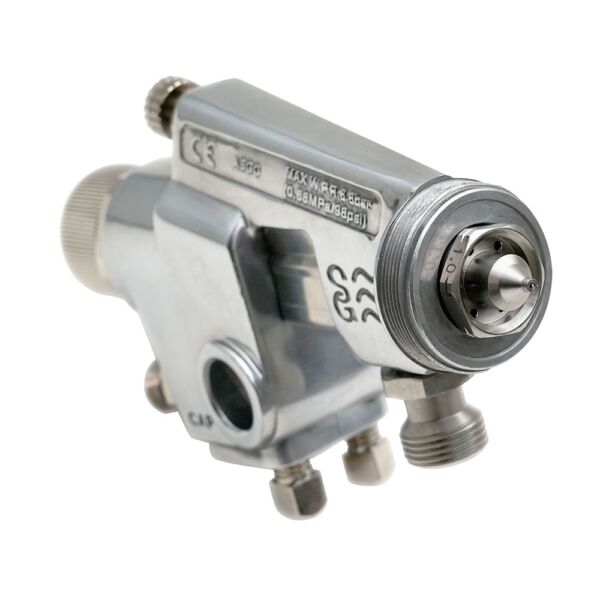

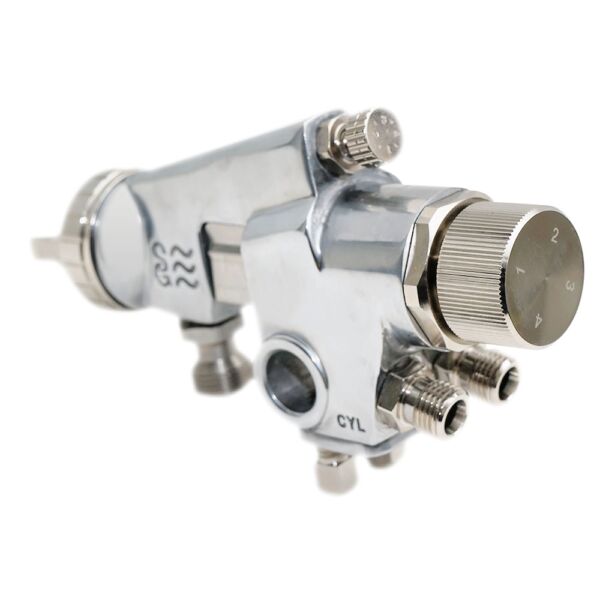

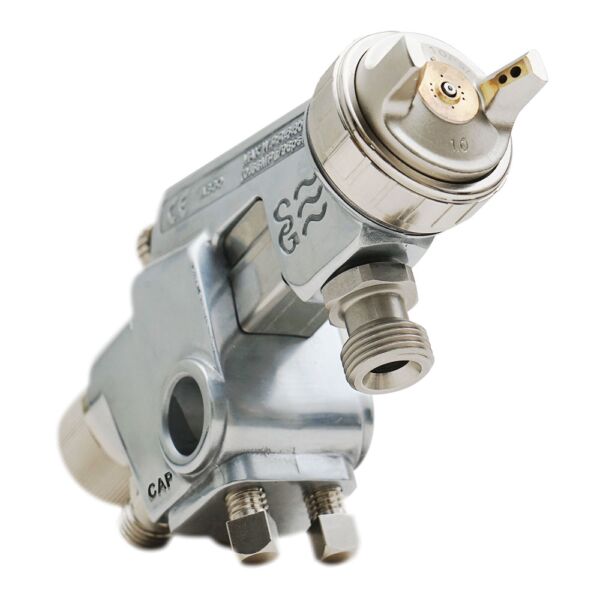

KH-200 H.V.L.P. is a High Volume Low Pressure automatic spray gun. Outstanding transfer efficiency meets EPA requirements and up to 25% material saving. It’s suitable for most surface coating and liquid spray finishing. The compact automatic spray gun with fixed spray positions is ideal for reciprocating rotary machines or programmable robots. The stainless steel fluid nozzle and needle withstand water-based or corrosive materials. Removable spray head with easy maintenance also withstands severe working conditions.
Application :
Vehicle, Motor bike, Bicycle, Manufacture, Woodworking, Furniture, Computer, Electronic, Metal, Wood, Plastic, Ceramic, and others…
Specification | Turn – up Kit | |||||
---|---|---|---|---|---|---|
Model No | Nozzle Size | Fluid Output | Pattern Width | Air Consumption | Model No | Nozzle Size |
KH-200-10 | 1.0 mm | 140 ml | 330 mm | 280 l/min | SG018-200-10 | 1.0 mm |
KH-200-12 | 1.2 mm | 150 ml | 340 mm | 290 l/min | SG018-200-12 | 1.2 mm |
KH-200-14 | 1.4 mm | 170 ml | 340 mm | 300 l/min | SG018-200-14 | 1.4 mm |
KH-200-16 | 1.6 mm | 200 ml | 350 mm | 300 l/min | SG018-200-16 | 1.6 mm |
KH-200-18 | 1.8 mm | 220 ml | 350 mm | 300 l/min | SG018-200-18 | 1.8 mm |
KH-200-20 | 2.0 mm | 250 ml | 370 mm | 310 l/min | SG018-200-20 | 2.0 mm |
• Type : Pressure Feed • Cup Capacity : Non • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ | • Working Pressure : 20~28 psi • Standard Nozzle : 1.2 mm • Gun Weight : 546 gs |
